1、熔吹布機參數及熔吹布機設備

1. Parameters and equipment of melt blowing cloth machine

1. 產品名稱:1600熔吹非織造布生產線

1. Product Name: 1600 melt blown nonwovens production line

生產線總安裝功率:550KW

Total installed power of production line: 550KW

實際功耗:300 ~ 380kW / h

Actual power consumption: 300 ~ 380kW / h

原材料:ppmf = 90 ~ 1500

Raw material: ppmf = 90 ~ 1500

成品寬度:1600mm

Finished product width: 1600mm

整機尺寸:11m×6m×5m(長×寬×高)

Overall size: 11m × 6m × 5m (length) × wide × High)

機器重量:30噸左右

Machine weight: about 30 tons

2. 擠出機配置

2. Extruder configuration

螺旋給料機:功率1.1kw

Screw feeder: power 1.1kw

95擠出機主電機功率:55kW

95 extruder main motor power: 55kW

擠出機減速器:國產單螺杆減速器

Extruder reducer: domestic single screw reducer

主機變頻器:台達

Host frequency converter: Delta

換網裝置:平板式液壓快速換網裝置

Screen changing device: flat hydraulic quick screen changing device

模頭:熔體吹布專用模頭，配有噴絲頭

Die head: special die head for melt blowing, equipped with spinneret

3.空氣加熱器

3. Air heater

力量:300千瓦

Power: 300 kW

大加熱溫度:400℃

Maximum heating temperature: 400 ℃

體重:950公斤

Weight: 950kg

2、熔吹布機組成及熔吹布機設備

2. Composition and equipment of melt blowing cloth machine

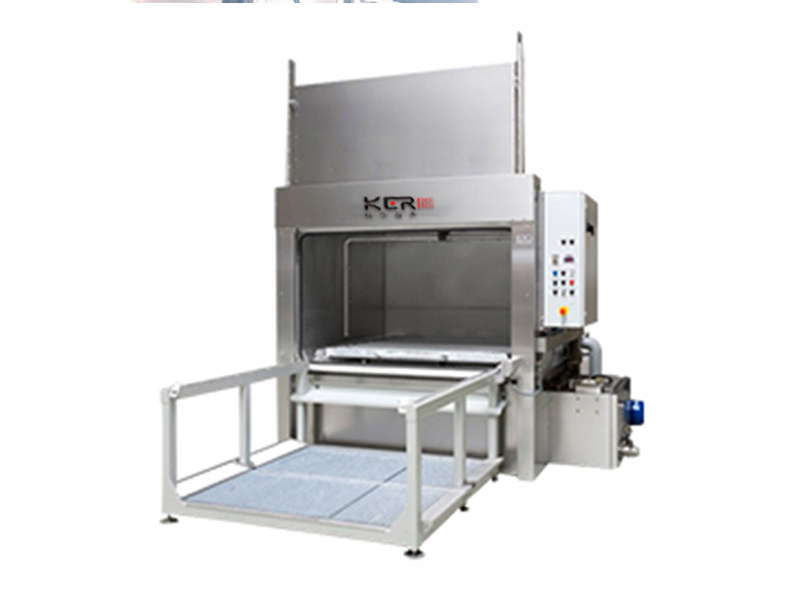

熔煉噴嘴、自動上料係統設備部件、超聲波清洗機、空氣加熱器、離心風機、螺杆擠出機、電動葫蘆、熔煉噴網成型機、熔煉噴網脫機繞線機、熔煉噴網脫機切割機等關鍵設備。

Smelting nozzle, automatic feeding system equipment components, ultrasonic cleaning machine, air heater, centrifugal fan, screw extruder, electric hoist, smelting spray net forming machine, smelting spray net offline winding machine, smelting spray net offline cutting machine and other key equipment.

1. 噴絲頭:熔體紡用噴絲頭是合成纖維(如聚酯和尼龍)生產的典型噴絲頭。熱塑性樹脂被加熱和熔化。在一定的速度下，通過噴絲板在空氣或水中擠出，冷卻固化成纖維。

1. Spinneret: spinneret for melt spinning is a typical spinneret produced by synthetic fibers (such as polyester and nylon). The thermoplastic resin is heated and melted. At a certain speed, it is extruded in air or water through spinneret, cooled and solidified into fibers.

2. 熔體吹製模具頭:模具頭包括模具頭主體、噴絲頭和風板。所述噴絲板和空氣板可拆卸地安裝在模頭主體內。所述噴絲板上設有噴絲板孔，所述噴絲板與所述空氣板之間有若幹夾緊槽。所述模頭主體上還設有若幹氣路。

2. Melt blowing die head: the die head includes the die head body, spinneret and air plate. The spinneret plate and the air plate are detachably installed in the die body. A spinneret hole is arranged on the spinneret, and a plurality of clamping grooves are arranged between the spinneret and the air plate. The die body is also provided with a plurality of air paths.

3.熔體吹風加熱器:即管道加熱器由本體和控製係統組成。電熱元件采用不鏽鋼管為保護套、耐高溫合金絲、結晶鎂砂等，經壓縮加工而成。。

3. Melt blowing heater: that is, the pipeline heater is composed of body and control system. The electric heating element is made of stainless steel tube as protective sleeve, high temperature resistant alloy wire, crystalline magnesia, etc. after compression processing..
