超聲波清洗機是通用的設備，應用方麵也很廣，下麵小編就來給大家介紹一下超聲波清洗機配件合作的清潔原理，想知道這方麵知識的朋友，就一起往下麵看看吧。

Ultrasonic cleaning machine is a general-purpose equipment, which is also widely used. Now let's introduce the cleaning principle of ultrasonic cleaning machine accessories cooperation. If you want to know this knowledge, let's take a look below.

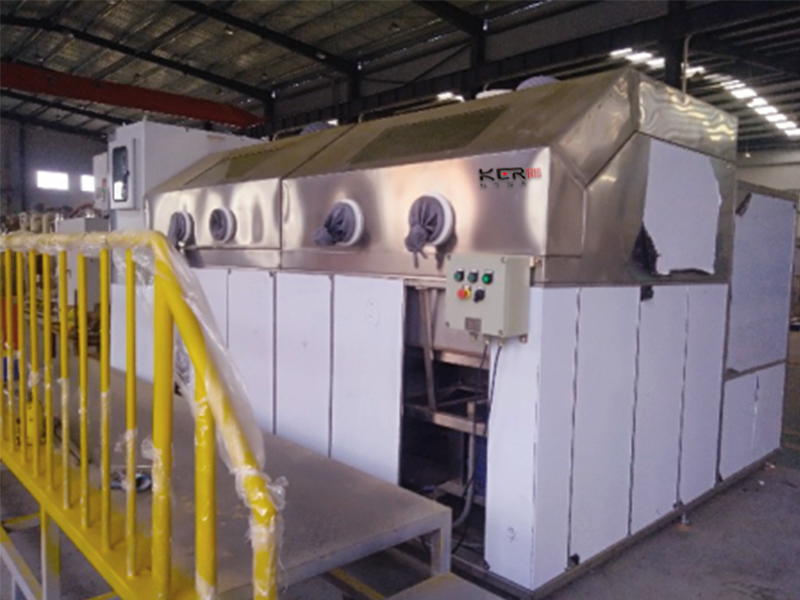

全自動超聲波清洗機使液體流動，產生數以百萬計的微小氣泡。這些氣泡在超聲波縱向傳播的負壓區形成並長大，在正壓區迅速閉合。

Automatic ultrasonic cleaning machine makes the liquid flow, producing millions of tiny bubbles. These bubbles form and grow in the negative pressure zone of longitudinal ultrasonic propagation, and close rapidly in the positive pressure zone.

所謂“空腔”效應在這一過程中，封閉的氣泡能形成1000多個大氣壓的瞬時高壓，連續不斷地產生閃光，像一係列小“爆炸”一樣不斷地衝擊物體表麵，使物體表麵產生裂紋並迅速剝落汙垢，從而達到物體表麵清潔的目的。

The so-called "cavity" effect in this process, the closed bubble can form an instantaneous high pressure of more than 1000 atmospheres, continuously produce flash, and constantly impact the object surface like a series of small "explosions", causing cracks on the object surface and rapidly peeling off dirt, so as to achieve the purpose of cleaning the object surface.

換能器與清洗液之間為不鏽鋼表麵振動板清洗槽，超聲波換能器粘附在其上，通過超聲波在（電路板）上放置標牌產生一定頻率和電壓的交流電壓信號，驅動換能器與不鏽鋼板進行高頻振動。

Between the transducer and the cleaning fluid is the cleaning tank of the stainless steel surface vibrating plate, on which the ultrasonic transducer is adhered. Through the ultrasonic wave, a sign is placed on the (circuit board) to generate an AC voltage signal of a certain frequency and voltage, which drives the transducer and the stainless steel plate to vibrate at a high frequency.

當鋼體振動時，把水往上推，當鋼板振動向下時，水跟不上鋼板的振動速度，所以水和鋼板之間會形成縫隙，反複振動後會形成許多氣泡。

When the steel body vibrates, push the water upward. When the steel plate vibrates downward, the water cannot keep up with the vibration speed of the steel plate, so a gap will be formed between the water and the steel plate, and many bubbles will be formed after repeated vibration.

這種氣泡是由空化效應引起的，稱為空化氣泡。空泡沿振動方向向水中擴散。如果水中有工件，空腔氣泡撞擊工件表麵，產生上千個大氣壓的衝擊力，帶動工件表麵的汙垢脫落。

This kind of bubble is caused by cavitation effect, which is called cavitation bubble. Cavitation diffuses into the water along the direction of vibration. If there is a workpiece in the water, the bubble in the cavity will hit the surface of the workpiece, producing an impact force of thousands of atmospheres, driving the dirt on the surface of the workpiece to fall off.

上麵就是給大家介紹的超聲波清洗機配件合作的清潔原理，大家看了上麵的內容應該也有所了解了吧，希望上麵介紹的知識對大家有所幫助，想了解更多內容可看一下91污網站www.ahfanglei.com其他信息。

The above is the cleaning principle of ultrasonic cleaning machine accessories cooperation introduced to you. After reading the above content, you should also understand it. I hope the knowledge introduced above will be helpful to you. For more information, please see other information on our website www.ahfanglei.com.
