操作超聲波清洗機的正確注意事項

作者:admin來源:http://www.ahfanglei.com/時間:2022-11-12

全自動超聲波清洗機的操作是有明確要求的,如果操作失誤,那麽可能會讓設備受損,甚至可能帶來事故,下麵這幾點是操作超聲波清洗機一定要注意的。
There are clear requirements for the operation of the automatic ultrasonic cleaner. If the operation is wrong, the equipment may be damaged, or even cause accidents. The following points must be paid attention to when operating the ultrasonic cleaner.
特別要注意的是全自動超聲波清洗機定要接地良好,把清洗機放置在清潔幹燥的地方,使用過程中避免設備產生劇烈的振動,還要確保有良好的散熱條件。
Special attention should be paid to the fact that the fully automatic ultrasonic cleaning machine must be well grounded, placed in a clean and dry place, avoid violent vibration of the equipment during use, and ensure good heat dissipation conditions.
開機之前一定要在設備中倒入清洗液,而且被清洗的物品是不能夠和清洗機的槽底結束的。好能夠把工件放到籃筐中,這樣能夠保護好機器,也能夠讓物品得到充分的清洗。
Before starting the machine, the detergent must be poured into the equipment, and the cleaned items cannot end up with the bottom of the washer. So that the workpiece can be put into the basket, which can protect the machine and fully clean the articles.
不能選擇強酸或者強堿性的清洗液,帶有腐蝕性或者有毒性的清洗液更加要慎用了。
It is not allowed to choose strong acid or strong alkaline cleaning solution, especially those with corrosivity or toxicity.
正確使用步驟:
Steps for correct use:
1、參照超聲波清洗機安裝說明書,連接清洗機的電控櫃與主機間的溫控傳感器信號線、超聲驅動線、加熱器控製線等線路,並接通380VAC電源,安裝清洗機的上水管、放水管與溢流排放管。
1. Refer to the installation instructions of the ultrasonic cleaning machine, connect the temperature control sensor signal line, ultrasonic drive line, heater control line and other lines between the electric control cabinet of the cleaning machine and the host machine, connect the 380VAC power supply, and install the water supply pipe, drain pipe and overflow drain pipe of the cleaning machine.

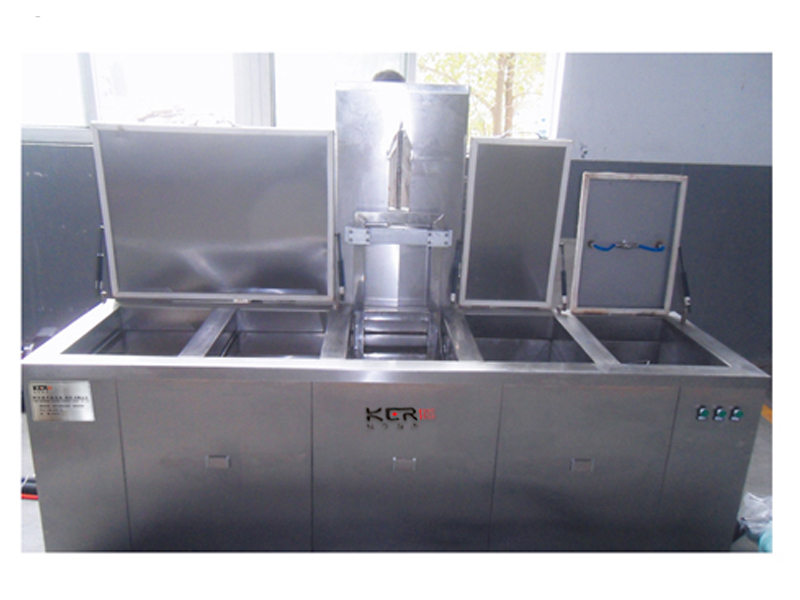

全自動超聲波清洗機
2、向清洗池內加入適量清水,液麵高度以浸沒將要清洗的零部件為準,一般不超過清洗池的3/4。
2. Add an appropriate amount of clean water into the cleaning pool, and the liquid level shall be subject to the immersion of the parts to be cleaned, generally not more than 3/4 of the cleaning pool.
3、啟動電控加熱開關,將水溫調節旋鈕上的白色刻度線指向適當的溫度(應為60℃左右)。清洗機在使用過程中,清洗劑的高溫度不應超過70℃。
3. Start the electric control heating switch and point the white scale mark on the water temperature regulating knob to the appropriate temperature (about 60 ℃). During the use of the cleaning machine, the high temperature of the cleaning agent shall not exceed 70 ℃.
4、待水溫升至40℃左右時,將清洗劑加入清洗池中,攪動清水使其充分溶解(此時亦可啟動超聲波或開啟鼓氣裝置進行攪拌)。
4. When the water temperature rises to about 40 ℃, add the cleaning agent into the cleaning pool and stir the clean water to fully dissolve it (at this time, the ultrasonic wave can also be started or the air blowing device can be started to stir).
5、清洗之前宜用竹刀先將零部件表麵的汙垢簡單清潔一下,超聲波能夠進行清洗,但其對泥類的汙物處理能力較弱,故預處理中,應盡量將黃泥或稀泥類的汙物去除。
5. Before cleaning, it is advisable to use a bamboo knife to simply clean the dirt on the surface of parts. Ultrasonic can clean, but its ability to treat mud is weak. Therefore, yellow mud or mud should be removed as much as possible during pretreatment.
所以,在進行超聲波清洗機操作的時候,以上的這些事項是一定要注意的,隻有這樣才能更好的完成任務。更多相關內容就來91污網站www.ahfanglei.com谘詢了解吧!
Therefore, the above matters must be paid attention to when operating the ultrasonic cleaning machine. Only in this way can we better complete the task. Come to our website www.ahfanglei.com for more information!
