The fully automatic through type cleaning machine can remove impurities such as oil stains. We can first understand the cleaning process flow.

清洗工藝：

Cleaning process:

上料→溶劑清洗→超聲波清洗→噴淋市水漂洗→噴淋市水漂洗→隧道爐烘幹→下料。

Loading → solvent cleaning → ultrasonic cleaning → spray water rinsing → spray water rinsing → tunnel furnace drying → unloading.

該清洗機主要由進料段、清洗腔室、超聲波清洗腔室、市水噴淋漂洗、市水漂洗腔室、4個儲液槽、循環過濾係統、自動恒溫加熱係統、隧道爐幹燥係統、出料段、不鏽鋼網帶輸送係統、機架、電控櫃等組成。

The cleaning machine is mainly composed of a feeding section, a cleaning chamber, an ultrasonic cleaning chamber, a municipal water spray rinsing chamber, a municipal water rinsing chamber, 4 liquid storage tanks, a circulating filtration system, an automatic constant temperature heating system, a tunnel furnace drying system, a discharge section, a stainless steel mesh belt conveying system, a rack, an electric control cabinet, etc.

本設備是一台精密清洗設備，它是使用水基清洗劑或水，輔以添加劑、活性劑，對需要清洗的工件進行精密清洗。據清洗工藝要求，可以清水中添加有關添加劑等，使水活化（皂化），減小水的表麵張力和提高其活化能力，從而對附在工件表麵的灰塵、廢屑等進行濕潤滲透到工件表麵，再加以機械衝洗力，噴淋使汙物脫離工件表麵而被衝洗掉，再用清水漂洗，以洗去附在工件表麵的清洗液，獲得潔淨的工件，達到清洗工件的目的。

This equipment is a precision cleaning equipment that uses water-based cleaning agents or water, supplemented by additives and activators, to perform precision cleaning on workpieces that need to be cleaned. According to the requirements of the cleaning process, relevant additives can be added to clean water to activate (saponify) the water, reduce the surface tension of the water, and improve its activation ability, so as to wet and penetrate the dust, waste debris, etc. attached to the surface of the workpiece to the surface of the workpiece. Then, mechanical washing force is applied to spray the dirt off the surface of the workpiece and be washed away. Then, rinse with clean water to remove the cleaning solution attached to the surface of the workpiece and obtain a clean workpiece, To achieve the purpose of cleaning the workpiece.

該機為全自動清洗設備，清洗過程由PLC控製。操作者將有工件的清洗框或工件放置在輸送帶上送往各工序段，對工件進行超聲波脫脂、噴淋漂洗、漂洗、隧道爐烘幹燥，操作者在出口處將清洗好的工件卸下。整個清洗主機密封，效果良好，裝有觀察玻璃窗。

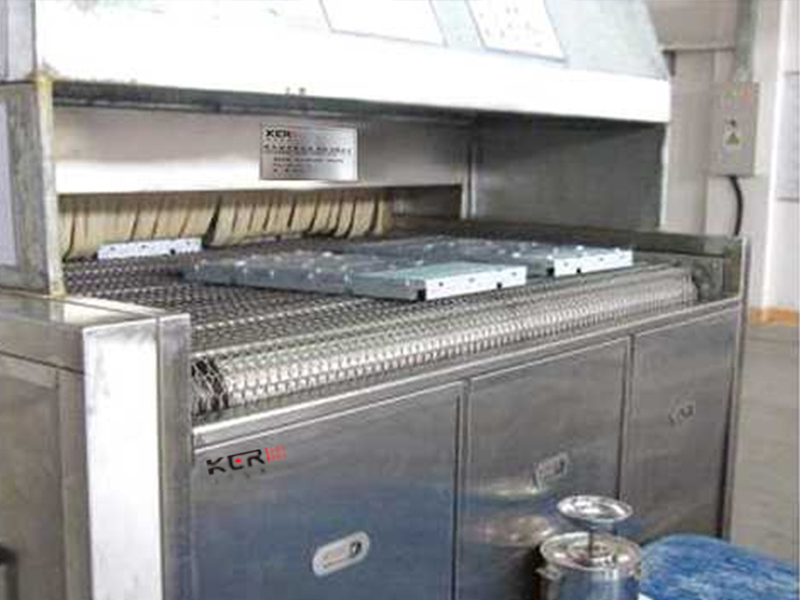

This machine is a fully automatic cleaning equipment, and the cleaning process is controlled by PLC. The operator places the cleaning frame or workpiece with the workpiece on the conveyor belt and sends it to each process section. The workpiece is subjected to ultrasonic degreasing, spray rinsing, rinsing, and tunnel furnace drying. The operator unloads the cleaned workpiece at the outlet. The entire cleaning host is sealed and has a good effect, equipped with observation glass windows.
